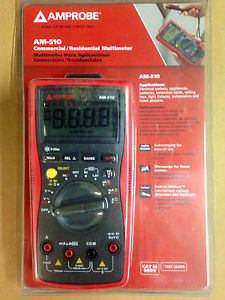

Compact yet tough, the Amprobe AM-510 autoranging digital multimeter delivers rugged, accurate performance for light commercial and advanced residential applications like rewiring an electrical panel, installing heated floors and light fixtures, troubleshooting and repairing home appliances, electrical sockets, and automotive electrical problems. Its CAT III safety rating and ease of use make it ideal for high voltage multimeter applications. Innovative digital multimeter features expedite go/no-go checks, and the built-in flashlight makes it easy to see wires and fuses in the dark. Plus a rubber tilt stand and a probe holder give you a “third-hand when you need it.

Measures AC/DC voltage up to 600V, AC/DC current, resistance, frequency, capacitance, duty cycle and temperature

CAT III 600V safety rated

Non-contact voltage detection enhances safety

Audible continuity quickly identifies shorts and opens

Diode test to verify diode polarity

Data hold freezes the reading on the display for further analysis

MIN/MAX recording records min/max measurements over time to show voltage fluctuations

Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range

Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter

Auto and manual-ranging delivers maximum flexibility

Backlit LCD display makes it easy to view results



Model Name Description AM-510 Included Accessories

9V(6F22) x1 battery installed

Test leads

Users manual

FEATURE AM-510 Best Accuracy AC Voltage 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V +/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 4 V to 400V ranges DC Voltage 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V +/- (0.8% rdg + 1 LSD) @ 4 V to 400 V ranges Resistance 400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ +/- (1.0% rdg + 2 LSD) @ 4 kΩ to 400 kΩ ranges AC Current 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A +/- (1.2% rdg + 3 LSD) @ 400 μA to 400 mA ranges DC Current 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A +/- (1.2% rdg + 3 LSD) Frequency 10 Hz to 10 MHz +/- (0.1% rdg + 4 LSD) Capacitance 40.00 nF, 400.0 nF, 4.000 μF, 40.00 μF, 100.0 μF, 4000 μF +/- (3.0% rdg + 5 LSD) @ 400 nF to 40 μF ranges Temperature -40 °F to 1832 °F -40 °C to 1000 °C +/- (1.8% rdg + 6 °F) @ >32 °F to 212 °F +/- (1.2% rdg + 3 °C) @ >0 °C to 100 °C Number of temperature inputs Single Thermocouple
