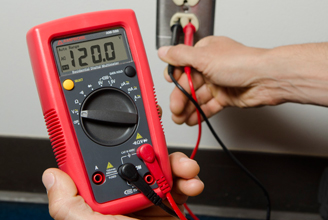

This versatile, easy-to-use digital multimeter is a great choice for homeowners or office maintenance staff. Use it to check for voltage in receptacles, extension cords, light fixtures, batteries, and other electrical circuits. or check fuses, light bulbs, and continuity of electrical connections. You can even use it to verify the voltage level of automotive batteries and troubleshoot electrical problems in cars. With its user-friendly digital multimeter features like autoranging and a CAT III safety rating, the AM-500 will save time and increase measurement confidence.

Measures voltage to 600V AC/DC, AC/DC current and resistance for residential and office maintenance

Audible continuity quickly identifies shorts and open circuits

Diode test to verify diode polarity

Data hold freezes the reading on the display for further analysis

Auto power-off conserves battery life

Low battery warning helps avoid losing power in mid-measurement

CAT III 600V safety rated to handle residential and commercial office applications



Model Name Description

AM-500 Included Accessories:

AAA x2 batteries (installed)

Test leads

Users manual

FEATURE AM-500 Best Accuracy AC Voltage 2.000 V, 20.00 V, 200.0 V, 600 V +/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 2 V to 200 V ranges DC Voltage 200 mV, 2.000 V, 20.00 V, 200.0 V, 600 V +/- (0.8% rdg + 1 LSD) @ 2 V to 200 V ranges AC Current 200.0 μA, 2000 μA, 20.00 mA, 200.0 mA, 2.000 A, 10.00 A +/- (1.2% rdg + 2 LSD) @ 200 μA to 200 mA ranges, 45 Hz to 400 Hz DC Current 200.0 μA, 2000 μA, 20.00 mA, 200.0 mA, 2.000 A, 10.00 A +/- (1.0% rdg + 2 LSD) @ 200 μA to 20 mA ranges Resistance 200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ +/- ( (1.0% rdg + 2 LSD) @ 2 kΩ to 200 kΩ ranges Battery test 1.5V, 9V +/- (10% rdg + 3 LSD) For more detailed specifications, please download the product datasheet under the “Resources" tab.
